Gantt Chart Custom Visualization

Data Visualization

Wyn Enterprise offers a series of in-house custom visualizations, built by our team, for public availability. Dashboard authors can use these custom visualizations as a fresh new way to bring their data to life.

The Gantt chart is the newest data visualization in our custom collection. A Gantt chart is a bar chart that provides a visual view of tasks scheduled over a period of time. Gantt charts are most commonly used in project management and are among the most popular and practical ways of showing activities (tasks or events) displayed against time.

On a Gantt chart, you can easily see the following at a glance:

  • Projects and their sub-tasks
  • The start date of each project
  • When tasks start and finish
  • How long will each task take
  • What tasks overlap and for how long
  • The progress of each task
  • The finish date of each project

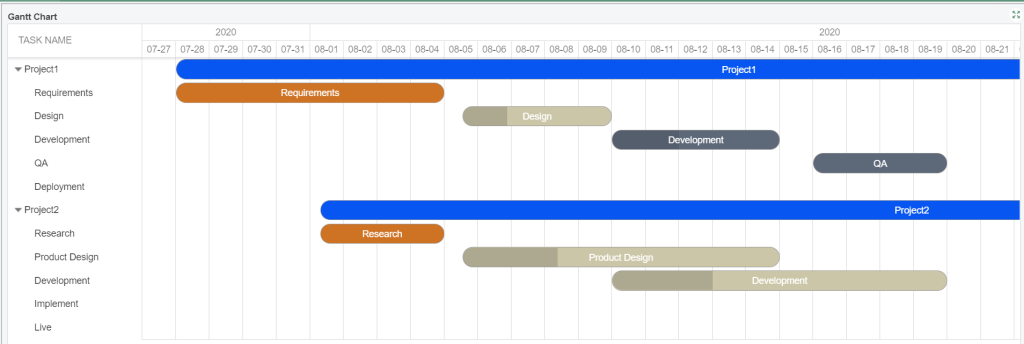

On the left of the chart (Y-axis) is a list of the projects and tasks/activities and along the top (X-axis) is a suitable time scale. Each task/activity is represented by a bar; the position and length of the bar reflect the start date, duration, and end date of the task/activity.

Working with Gantt Chart Visualization

Here's a quick demo exploring Gantt Chart custom visualizations. We'll show you how to implement them in a Wyn dashboard.

1. Download the Gantt chart visualization from our GitHub repository.

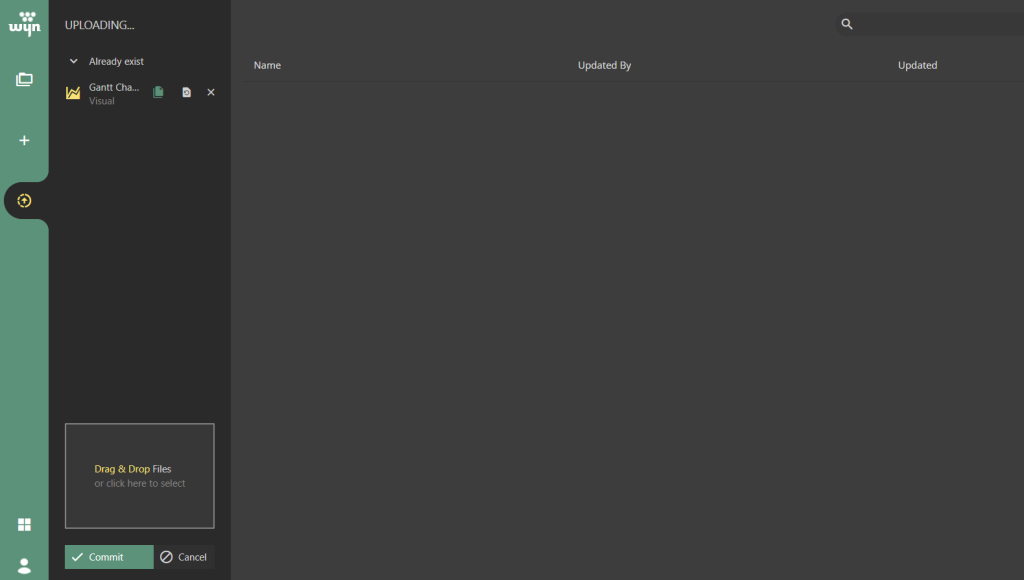

2. Upload the Gantt Chart.viz file on Wyn server through the Resource Portal.

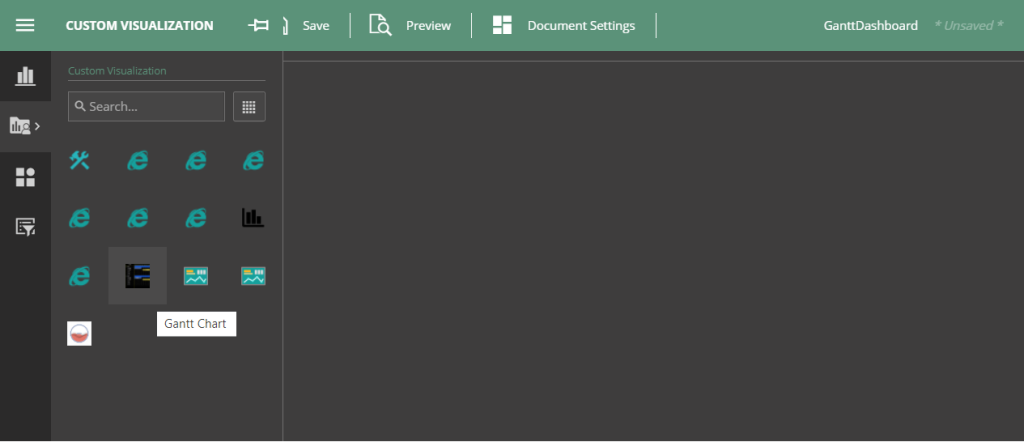

3. Create a new dashboard and drag and drop the Gantt chart visualization from the Custom Visualizations tab.

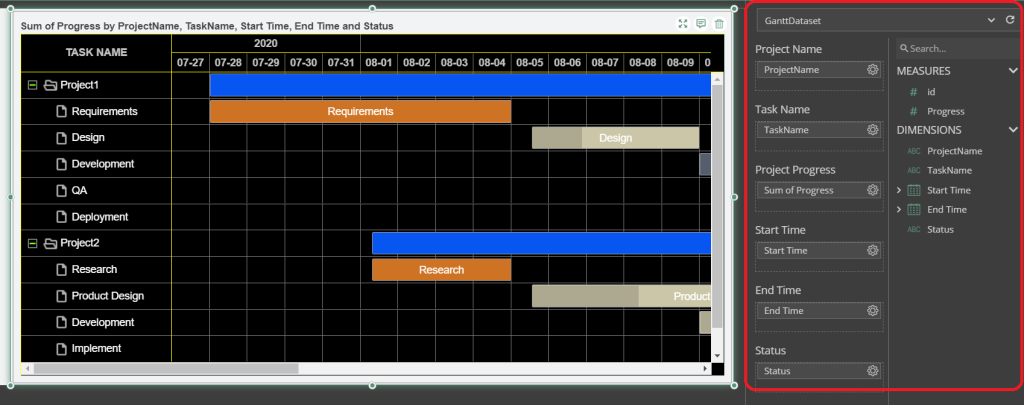

4. Bind data to the Gantt chart using fields from the Dataset as below:

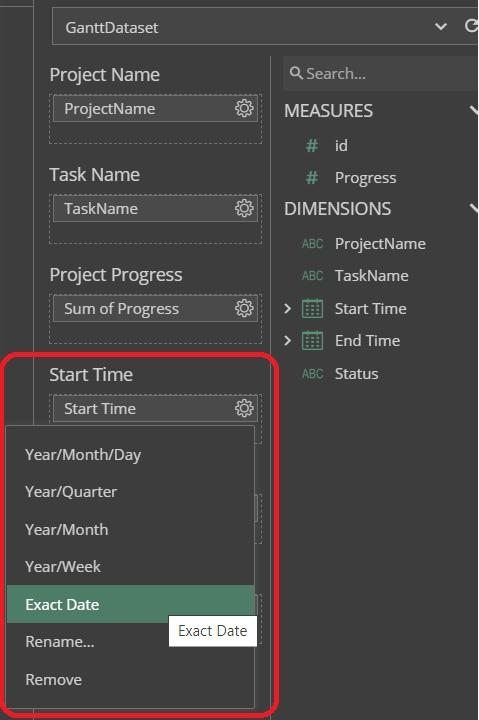

Important note - The format of the Start Time and End Time fields must be set to 'Exact Date' to show the data.

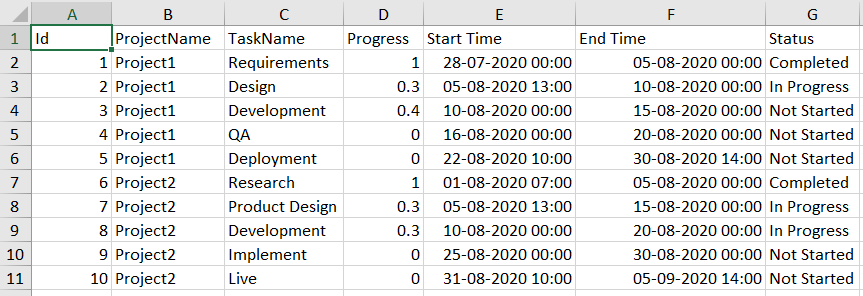

The structure of the Datasource used is as follows:

5. Once the data is bound, you can make changes to the Gantt chart's appearance from the Inspector panel (color palette, background, etc.).

6. Preview the dashboard.

Running Gantt Chart directly from the downloaded package:
  1. The steps to run the Gantt chart custom visualization from the downloaded package directly are as follows:
  2. Install wyn-visual-tools globally. Run' npm install @grapecity/wyn-visual-tools -g' from the command prompt.
  3. Change the directory to the sample's location and run 'npm install' to install all required modules.
  4. Run' wyn-visual-tools develop' to start the development server.
  5. Open the Wyn Enterprise portal in your browser. Go to the Admin Portal -> Dashboards Settings and enable developer mode.
  6. Go back to the Documents Portal and create a new dashboard. Then, add a "Dev Tools" scenario from the Custom Visualization tab onto the dashboard design surface.
  7. Develop your custom visualization using visual API. We recommend developing it using TypeScript.
  8. Click the Refresh button on the action bar of the Dev Tool visualization to reload the visualization.
To generate the .viz file:
  1. Update the version in package.json and visual.json before release.
  2. Pack the visual with build tools. Run' wyn-visual-tools package'. This command will generate a file with ".viz" extension. This is the custom visualization which will be uploaded to Wyn.
  3. Upload the .viz file to Wyn Enterprise using the Resource Portal.
  4. The visual will now appear under Custom Visualizations in the Dashboard Designer.
